Support for your Dyson V12 Detect™ Slim vacuum
Dyson V12 Detect™ Slim
Here you can find helpful tips and advice, how-to videos, your user manual and more.
Register your machine
Register to activate your guarantee for instant access to how-to guides, user manuals, and more. You can also receive tailored support, straight to your inbox.
Watch the quick-start video
Our video shows you how to assemble and set up your vacuum so it's ready to use.
Charge before first use
It's important to charge the battery before using your vacuum for the first time. This helps the battery monitoring system's algorithm more accurately calculate remaining run time.
Need any help?
If you need advice about your machine, you can chat to a Dyson Expert online, by phone or in-store.
Getting to know your LCD screen
How the graph works
As you vacuum, a piezo sensor counts and measures the microscopic particles picked up. Results are displayed in a graph on-screen, with particles ranked into four sizes, from 0–500 microns (µm) and above.¹
10µm – particles as small as allergens and pollen
60µm – particles as small as microscopic dust and skin flakes
180µm – particles as small as dust mites and fine sand
500µm – particles as small as sugar granules
Powerful cleaning, measured in microns
The graph is available in all power modes, with all accessories. Like our famous transparent bin, it shows how much dust you've removed after every clean. To reset the graph, charge for 30 minutes, or remove the battery for 15 seconds.
How do I know I've achieved a deep clean?
When lots of dust is being vacuumed, the graph rises quickly. But as less and less dust is picked up, it slows down, letting you know you've achieved a thorough deep clean.
¹Best accuracy achieved in Auto mode. Auto ramp feature in Auto mode only. Testing based on average in home usage according to Dyson internal test data. Microscopic dust is defined as particles less than 100 microns.
FAQs about the particle count graph
In Auto mode, the motor – which controls suction power – intelligently reacts to the amount of dust detected to provide a deeper clean, automatically. More dust, more power. Adjusting the motor sensitivity in the settings menu affects how responsive your machine is to the level of dust detected. Set to ‘High’, and your machine will react more often, and provide more suction power, when a smaller concentration of dust is detected. Set to ‘Low’, and suction power will react less often, and to larger amounts of dust. To change the motor sensitivity, hold the selection button beneath the LCD screen to enter the settings menu. Then tap the button to scroll through to the motor sensitivity settings. Hold to select, then choose your preferred setting.
Yes. The graph works independently of the attachments, and can be used with all cleaner heads, tools and accessories.
To reset the particle count, either charge your machine (the count will reset after 30 minutes of charging) or remove the click-in battery for 15 seconds before replacing. The vacuum can be purged of any residual dust in the cleaner head or wand by activating suction away from any surface for 10 seconds.
Dyson DLS™ (Dynamic Load Sensor) technology senses when the floor type changes, by monitoring brush bar resistance while using the High Torque cleaner head. The piezo sensor senses changes in dust levels, and works with any cleaner head.
While we can measure particles as small as 0.1 microns in the lab, it’s not yet possible to fit these measurement technologies into a vacuum cleaner. What we can't yet detect with our piezo sensor, we can filter out. Our HEPA filter media can capture 99.97% of particles down to 0.1 microns in size.
Your LCD screen also displays
Second-by-second run time
Remaining run time is shown on screen in a second-by-second countdown, which constantly updates in real time, according to the power mode you select.
To help maintain performance, your vacuum will remind you when it's time to recharge the battery, or clean the filter. It'll even help you clear any blockages.
Settings, alerts and notifications
To enter the settings menu, hold the selection button. Tap the button to scroll through the options, hold to select. Press the power button at any time to start vacuuming.
Choose your preferred language.
Turn screen and audible maintenance alerts on/off.
Switch the particle count graph on/off. When the graph is turned off, the LCD screen shows power mode and remaining run time during cleaning.
In Auto mode, suction power is automatic. More dust, more power. Set motor sensitivity to 'High', and auto suction reacts more often, to lower amounts of dust. Set to 'Low', and it reacts less often, with higher concentrations of dust.
Alerts and notifications
Please charge your battery. Your machine will stop when the charge has been depleted. When run time is low, your machine will pulse three times to alert you.
Filter not sealed
The filter section is not fully interlocked. The on-screen animation shows you which sections to look at.
A blockage has been detected. Watch the animation to see which airways to check. Your machine will also pulse seven times to alert you.
Your filter needs cleaning. Follow the advice further down the page to wash your filter.
If you use Boost mode frequently, this message will appear, to help you conserve battery life.
Getting to know your power modes
Your vacuum has three power modes, each designed for different tasks. Change power mode quickly by tapping the selection button.
The optimum balance of power and run time. Med mode applies when a non-powered tool is attached.
Maximum run time, for longer cleans all around your home.
For the toughest tasks. Designed for quick, intensive cleaning of ground-in dirt.
Intelligent suction power
Dyson recommends Auto mode for the best experience. In Auto mode, suction power automatically increases when higher concentrations of dust are detected. Once the dust is removed, power returns to normal to conserve the battery.2
2Suction optimisation works in Auto mode only.
FAQs about power modes and LCD screen
Both modes provide the optimal balance of power and run time. Auto mode works with all cleaner heads and the Dyson Hair screw tool, and automatically adjusts suction power to match the level of dust detected. Med mode is displayed instead of Auto mode when non-powered tools are attached, e.g. the Crevice tool.
Hold the selection button to enter the settings menu. Hold the ‘Select language’ option to view the languages available. Tap the button to scroll through the list. When you reach your preferred language, hold the button to select. If you select the wrong language, release the button before the countdown ends. To confirm the language, hold the button until the countdown ends.
The LCD screen only uses up to 1.5 watts of power, which won't noticeably impact run time.
Getting to know your cleaner heads
You can use two different Dyson-engineered cleaner heads with your Dyson V12 Detect Slim™ vacuum.
Illuminated cleaner head
Hard floor specialist. 25cm-wide cleaner head with soft nylon and anti-static carbon fibre filaments removes fine dust from hard floors and narrow gaps. With a low profile to reach further under furniture.
Direct drive cleaner head
Drives stiff nylon bristles into carpets to capture ground-in dirt. The motor is integrated into the cleaner head brush bar for powerful, uninterrupted edge-to-edge cleaning.
FAQs about cleaner heads
The laser is optimised to work on any smooth, hard floor – including white surfaces and wood laminate. The laser effect is visible in up to roughly 500 lux ambient light – about the same as a well-lit kitchen space. Direct sunlight is in the order of 10,000+ lux and not possible to outshine.
The human eye has evolved to be more sensitive to green light than any other colour, helping to enhance contrast and revealing more invisible dust.
Yes. The laser is Class 1 – the safest there is in all conditions.
Yes. The laser can be turned on or off using a slide button on the cleaner head.
The laser can be wiped clean with a microfibre cloth.
It is not waterproof.
This is a hard floor only technology. The laser effect does not work on carpet, and would not be useful on the Direct drive cleaner head.
No. The laser uses roughly 1W of electrical power, far too tiny to have a noticable impact on run time.
Our accessories add even greater versatility. Each can be attached to the wand for cleaning up high, or directly to your machine for handheld cleaning.
New Hair screw tool
Picks up long hair and pet hair. Fast. Anti-tangle conical brush bar spirals hair off and into the bin. Motor-driven cleaning for small spaces.
New Light pipe crevice tool
Crevice tool with LED lights lets you reach into dark, narrow spaces and see where you’re cleaning.
Bends to comfortably reach down low. Engineered to clean further under furniture by adjusting the wand angle up to 90°.

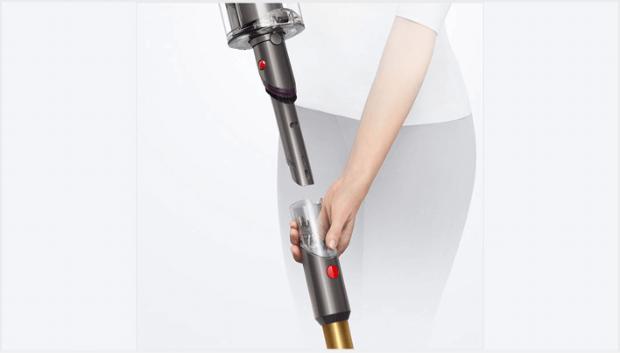

New Built-in dusting and crevice tool
Wand detaches in a click to reveal a ready-to-go crevice tool, with optional brush, stored inside for on-the-spot cleans.
Engineered for precise cleaning around tricky edges and into hard-to-reach narrow spaces.

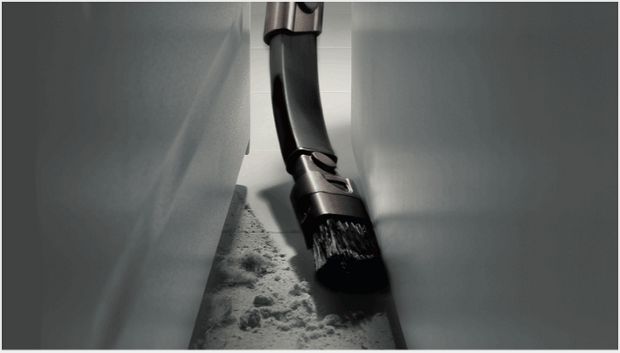

Flexi crevice tool
Extends and bends to reach awkward narrow spaces where dust settles around your home and car.
Two tools in one – wide nozzle and brush, for quick switching between cleaning and dusting tasks around your home or car.

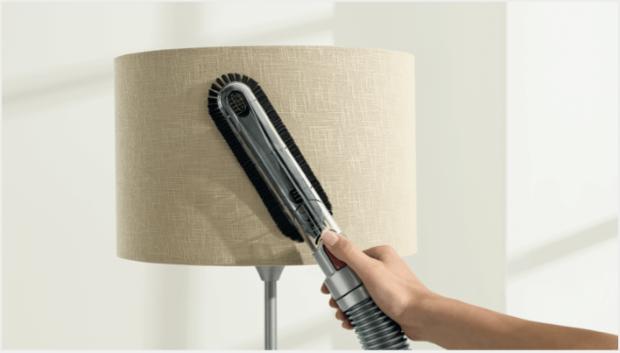

Soft dusting brush
For vacuum-assisted dusting of screens and surfaces. Soft bristles lift dust from delicate surfaces.

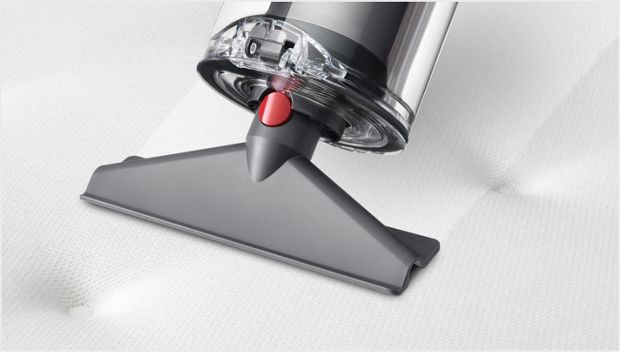

Removes dust, dirt and allergens from mattresses, futons and upholstery.
Stubborn dirt brush
Stiff nylon bristles dislodge ground-in dirt from coarse carpets, high traffic areas and car interiors.
Bends and locks at different angles. Fits any compatible tool for effective cleaning in hard-to-reach high areas of your home.
Adds up to 61cm of flexible reach to any tool attachment, to clean up high or down low in your home or car.
Attaches older Dyson universal-fit tools to our newer machines with quick-release catches.
How to set up your wall dock
You can use the wall dock to store your vacuum, so it's always on hand and ready to use. Watch how.
Getting the best from your battery
Charging the battery
You can charge your battery on or off the machine, and on or off the wall dock.
If you have an additional battery, you can achieve 120 minutes of run time in Eco mode. Swap batteries quickly by pressing the red battery release button, and sliding the battery off your machine. Your extra battery clicks into place.
Charge between cleans
It can take up to 4.5 hours to fully charge your battery. When the green tick is displayed, charging is complete.
Leave it charging
Your battery is designed to be left plugged in, so it's always ready to use.
Looking after multiple batteries
If you have an additional battery, we recommend charging it soon after purchase, and alternating batteries regularly to prolong battery health.
Storing your batteries
If you're not using your batteries, we recommend storing them with a charge of 30%.
FAQs about the battery
A full charge takes up to 4.5 hours.
Run time is displayed on the LCD screen, and your machine will pulse three times to alert you if it's getting low.
Yes, your swappable battery packs can be charged on or off your machine, on or off the dock.
We recommend alternating your batteries regularly to prolong battery health.
Yes, the battery is designed to be left on charge, to ensure your vacuum is ready for the next use.
We recommend charging your machine after every clean to maximise run time.
Maintaining your machine
How to clean your vacuum
Cleaning removes dust build-up and helps optimise performance. The filter and brush bar in the Dyson Laser Slim Fluffy™ cleaner head can be washed, and the bin and tools wiped clean.
Why it's important to clean your filter regularly
The filter captures microscopic dust, which can accumulate and affect performance. Help maintain suction by washing the filter at least once a month, or more frequently if used heavily.
How to clean your filter
1. Remove your Dyson filter
Remove your filter by unscrewing the post-motor filter from the machine.
2. Remove excess dust
Tap your filter lightly on the side of the sink or in the bin, to remove any loose dust and debris.
3. Rinse filter
Wash your filter with warm tap water – gently rubbing it with your hands. Don't use detergents.
4. Give it a firm shake
Fill your filter with warm tap water. Cover the open ends with your hands and shake firmly to remove the dirt. It's important not to agitate the filter media, i.e. the pleated elements. Repeat until the water runs clear, and then firmly shake the filter to remove all excess water.
5. Leave to dry for 24+ hours
After washing your filter, leave to dry for at least 24 hours in an area with plenty of airflow, such as beside a fan or open window. When drying, position the filter with the larger end on the surface. Your filter must be completely dry before you put it back into the machine, or it could damage the motor. Don't dry in a tumble dryer, microwave or near a naked flame.
Don't overfill the bin
Overfilling the bin can reduce suction and affect the accuracy of the particle count. To maintain suction, empty as soon as debris reaches the MAX marker.
Your LCD screen will alert you if there's a blockage in your machine's airways. On-screen animation shows you which airflow pathways to check.
Washing the Dyson Laser Slim Fluffy™ brush bar
You can wash your Laser Slim Fluffy™ cleaner head's brush bar in warm water.
FAQs about maintenance
Your machine will pulse seven times to alert you if there’s a blockage. You can follow the animated guide on your LCD screen to clear it.
The LCD screen on your machine will remind you when it's time to clean your filter. This will usually be around once a month, but may be more frequent if you use your machine more heavily. After cleaning the filter, always leave it to dry for at least 24 hours. You must ensure it's completely dry before refitting. We recommend following the cleaning instructions and cleaning by hand. The filter is not suitable for dishwasher use.
Your machine works independently and doesn't currently connect to the Dyson Link app.
